Harbour towing rope

The Dextron® harbour towing rope is made with Dyneema® fiber and can be covered with a OTS Protective jacket™. The patented OTS Protective jacket™ gives excellent protection against abrasion on the rope. The Dextron® ropes provide for durability, reliability, longer service lifetime, low operation costs and safer operations. Because of light weight of the rope, the operations can be done faster and less manpower is needed.




Dextron®12 Plus

Dextron®12 Plus is a torque-free, 12-strand braided rope with maximum strength-to-weight ratio and size-for-size has the same strength as steel. Dextron®12 Plus is made with Dyneema® SK78 and is an excellent wire rope replacement with extremely low stretch, superior flex fatigue and wear resistance.

Applications

  • Seismic Lines
  • Mooring lines
  • Winch lines
  • Pick-up lines
  • Tug assist lines
  • Tow lines
  • Fishing Lines
  • SPM hawsers
  • Subsea installation lines
  • Wire rope replacement
  • Pennants
  • Lifting Slings
  • Grommets
  • Messenger Lines

Special Properties

  • Stronger than steel wire on corresponding diameter
  • 8 times stronger than steel with same weight
  • Fast and easy to splice
  • Floats
  • High abrasion resistance
  • Long service life
  • Flexible and easy to handle
  • High safety – low kinetic energy (low lash back)
  • Torque free
  • Dielectric and resonance properties





Characteristics:

Material Dyneema®SK78
Colour of rope Yellow
Elastic elongation 0,44% at 10% of breaking load
0,62% at 20% of breaking load
0,79% at 30% of breaking load
Water absorption None
Abrasion resistance Very good
Fatigue resistance Excellent
UV exposure Very good
Chemical resistance Excellent
Melting range 144-152 ºC
Max work temp. 65ºC
Specific density 0,98 (floating)



Request techical details:
Send mail to sales@otsas.no


OTS 12-strand Nylon

Made with high-quality Nylon (PA) fiber with excellent mechanical properties. The rope is especially suitable for towing pennants and mooring tails, and is usually combined with OTS Protective jacket™ for increased service lifetime.

Applications

  • Towing
  • Mooring
  • Shock absorbers
  • Stretchers
  • Pendants

Special Properties

  • Excellent break load
  • Excellent elongation characteristics
  • Fast and easy to splice
  • High abrasion resistance
  • Torque free



Characteristics:

Material Polyamide (nylon)
Finish Sea Guard coating
Colour of rope Purple (or yellow with black and green tracer)
Elastic elongation 10,0% at 20% of breaking load
15,5% at 40% of breaking load
18,0% at 60% of breaking load
Water absorption 4,0-6,0%
Abrasion resistance Very good (dry)
Fatigue resistance Good
UV exposure Good
Chemical resistance Good
Melting temp. 258 ºC
Max work temp. 90ºC
Specific density 1,14 (non-floating)



Request techical details:
Send mail to sales@otsas.no


OTS Protective jacket™: Patent no: 314459

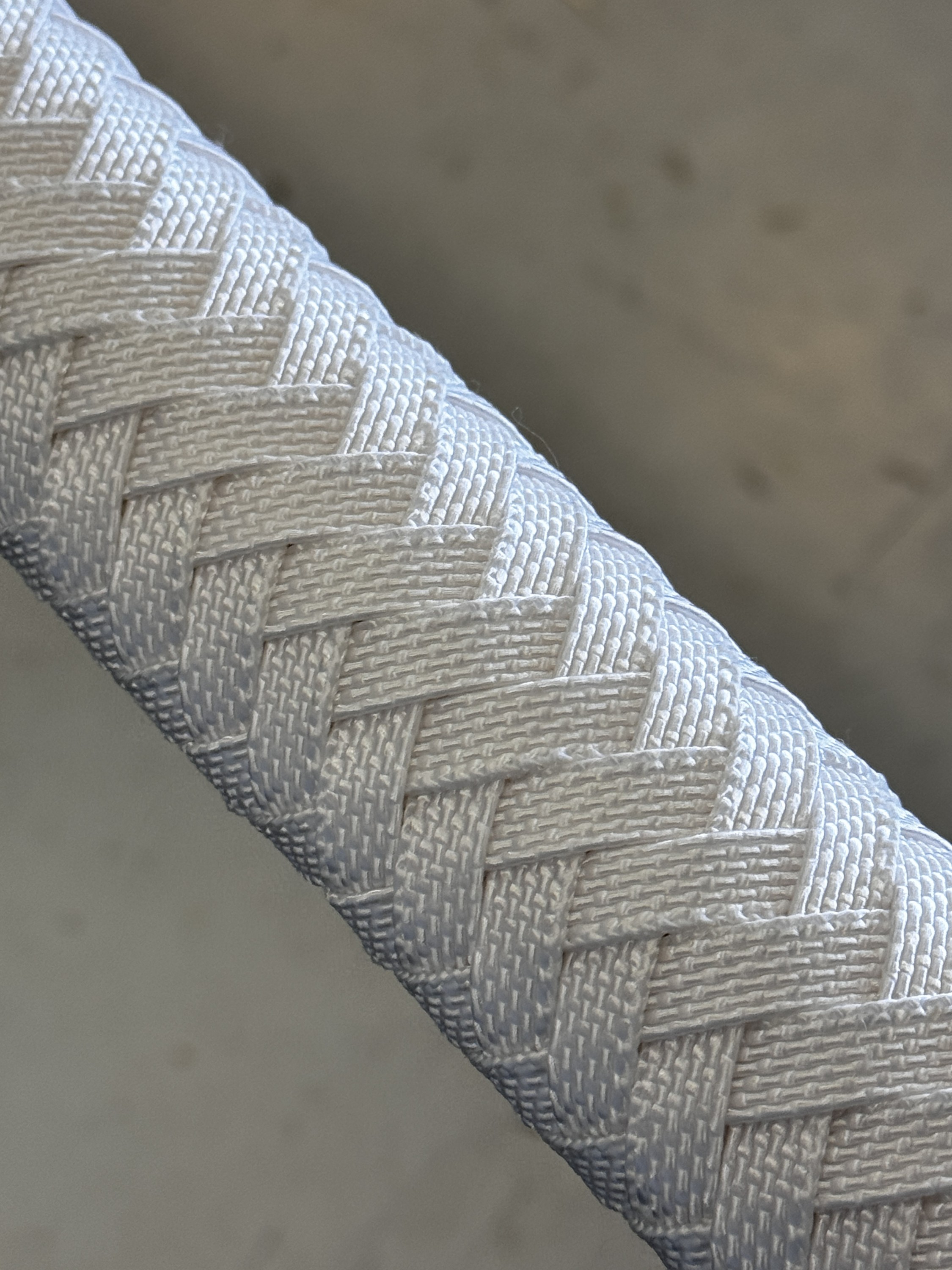

The patented chafe gear - OTS Protective jacket™ - offers excellent protection against external abrasion and increases rope lifetime with up to five times. The "no-rupture" construction combined with the worlds most abrasion resistant synthetic fibers, makes this the best cut -and abrasion resistant cover for your ropes. The jacket is mechanically braided onto the rope for a firm and solid finish.

OTS Protective jacket™ is braided in the following combinations:

  • Soft eyes
  • Soft eyes and required length (for instance over the splices)
  • Exposed area on the rope
  • Entire rope length



OTS Protective Jacket™

  • Made with HMPE or polyester fiber.
  • The OTS Protective Jacket™ comes out as a clear winner in comparative testing of abrasion and cut resistance.
  • Excellent protection against wear and tear.
  • Patented technology







Advantages

  • Increases service life.
  • Can be braided onto entire rope or exposed areas.
  • Prevents rope from twisting.
  • Protects rope from external abrasion.
  • Reduced size of mooring line.
  • Reflective material can be woven into jacket band for better visibility.
  • Jacket band can be delivered in any colour.
