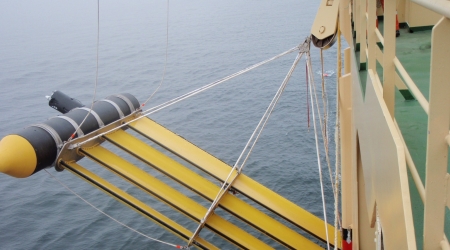

Deflector lifting rope

The Dextron® deflector lifting rope is made with Dyneema® which is the worlds strongest fiber. It is as strong as steel wire, but less than one-seventh the weight. We cover the rope with OTS protective jacket to avoid damage on rope

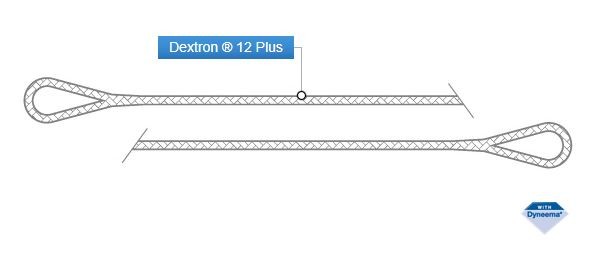

Dextron®12 Plus

Dextron®12 Plus is a torque-free, 12-strand braided rope with maximum strength-to-weight ratio and size-for-size has the same strength as steel. Dextron®12 Plus is made with Dyneema® SK78 and is an excellent wire rope replacement with extremely low stretch, superior flex fatigue and wear resistance.

Dextron®12 Plus is Type-Approved by DNV. Download certificate



Applications

  • Seismic Lines
  • Mooring lines
  • Winch lines
  • Pick-up lines
  • Tug assist lines
  • Tow lines
  • Fishing Lines
  • SPM hawsers
  • Subsea installation lines
  • Wire rope replacement
  • Pennants
  • Lifting Slings
  • Grommets
  • Messenger Lines

Special Properties

  • Stronger than steel wire on corresponding diameter
  • 8 times stronger than steel with same weight
  • Fast and easy to splice
  • Floats
  • High abrasion resistance
  • Long service life
  • Flexible and easy to handle
  • High safety – low kinetic energy (low lash back)
  • Torque free
  • Dielectric and resonance properties





Characteristics:

Material Dyneema®SK78
Colour of rope Yellow
Elastic elongation 0,44% at 10% of breaking load
0,62% at 20% of breaking load
0,79% at 30% of breaking load
Water absorption None
Abrasion resistance Very good
Fatigue resistance Excellent
UV exposure Very good
Chemical resistance Excellent
Melting range 144-152 ºC
Max work temp. 65ºC
Specific density 0,98 (floating)



Request techical details


OTS Protective jacket™: Patent no: 314459

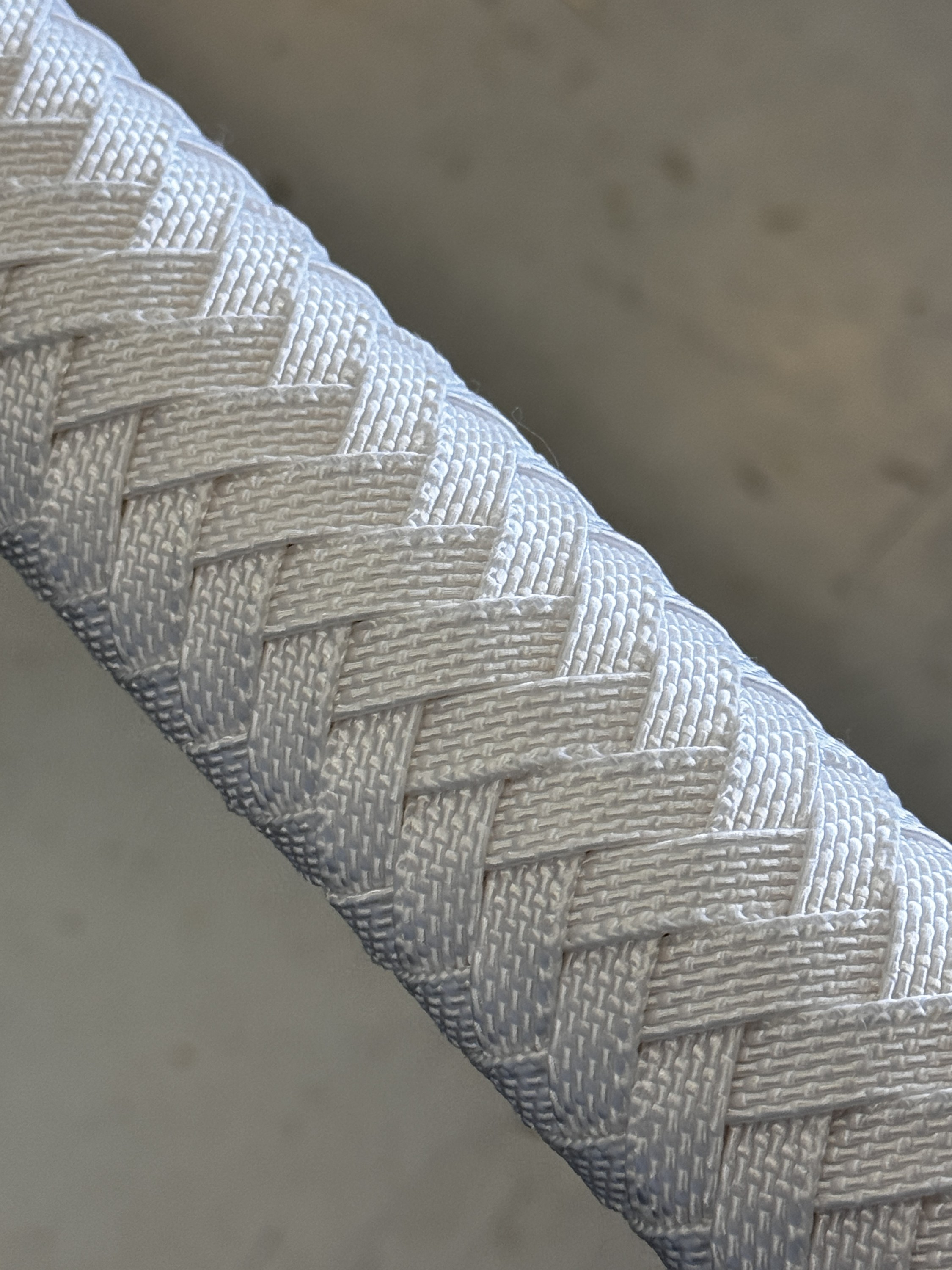

The patented chafe gear - OTS Protective jacket™ - offers excellent protection against external abrasion and increases rope lifetime with up to five times. The "no-rupture" construction combined with the worlds most abrasion resistant synthetic fibers, makes this the best cut -and abrasion resistant cover for your ropes. The jacket is mechanically braided onto the rope for a firm and solid finish.

OTS Protective jacket™ is braided in the following combinations:

  • Soft eyes
  • Soft eyes and required length (for instance over the splices)
  • Exposed area on the rope
  • Entire rope length



OTS Protective Jacket™

  • Made with HMPE or polyester fiber.
  • The OTS Protective Jacket™ comes out as a clear winner in comparative testing of abrasion and cut resistance.
  • Excellent protection against wear and tear.
  • Patented technology







Advantages

  • Increases service life.
  • Can be braided onto entire rope or exposed areas.
  • Prevents rope from twisting.
  • Protects rope from external abrasion.
  • Reduced size of mooring line.
  • Reflective material can be woven into jacket band for better visibility.
  • Jacket band can be delivered in any colour.







Request techical details
