Pull in Ropes

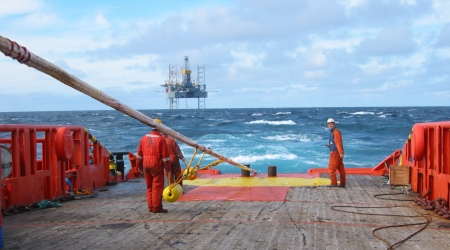

The pull in ropes are tailor made according to customers´ specifications. The ropes comes with OTS protective jacket™ to protect the rope from the hard abrasion caused by the deck machinery. The qualities of the OTS pull in ropes provide safer operations, reduced operation time and lower the operational costs when compared to alternative products.

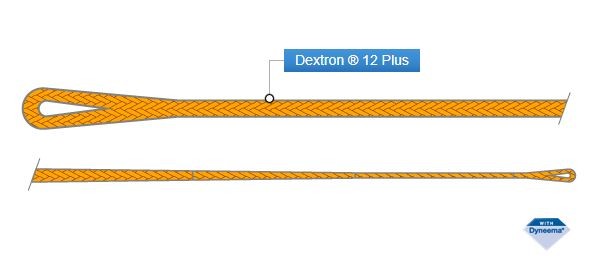

Dextron®12 Plus is a torque-free, 12-strand braided rope with maximum strength-to-weight ratio and size-for-size has the same strength as steel. Dextron®12 Plus is made with Dyneema® SK78 and is an excellent wire rope replacement with extremely low stretch, superior flex fatigue and wear resistance.
Dextron®12 Plus is Type-Approved by DNV.
Applications
- Seismic Lines
- Mooring lines
- Winch lines
- Pick-up lines
- Tug assist lines
- Tow lines
- Fishing Lines
- SPM hawsers
- Subsea installation lines
- Wire rope replacement
- Pennants
- Lifting Slings
- Grommets
- Messenger Lines
Special Properties
- Stronger than steel wire on corresponding diameter
- 8 times stronger than steel with same weight
- Fast and easy to splice
- Floats
- High abrasion resistance
- Long service life
- Flexible and easy to handle
- High safety – low kinetic energy (low lash back)
- Torque free
- Dielectric and resonance properties
Characteristics:
| Material | Dyneema®SK78 |
| Colour of rope | Yellow |
| Elastic elongation | 0,44% at 10% of breaking load 0,62% at 20% of breaking load 0,79% at 30% of breaking load |
| Water absorption | None |
| Abrasion resistance | Very good |
| Fatigue resistance | Excellent |
| UV exposure | Very good |
| Chemical resistance | Excellent |
| Melting range | 144-152 ºC |
| Max work temp. | 65ºC |
| Specific density | 0,98 (floating) |
Maximum strength without compromise. The Dextron® 12 Super is a rope made with Dyneema® SK99 - the ultra-strong fiber. Dextron® 12 Super is the optimal choice for operations with very high demand on modulus and breaking strength.
Characteristics
| Material | Dyneema® SK99 |
| Colour of rope | Yellow with gold tracer |
| Elastic elongation | 0,44 at 10% 0,62 at 20% 0,79 at 30% of breaking load |
| Water absorption | None |
| Abrasion resistance | Very good |
| Fatigue resistance | Excellent |
| UV exposure | Very good |
| Chemical resistance | Excellent |
| Melting range | 144-152 ºC |
| Max work temp. | 65ºC |
| Specific density | 0,98 (floating) |
Dyneema® SK99 is the latest innovation for highest level of performance. Dyneema®SK99 has the highest tenacity (42.5 cN/dtex) and modulus (1590cN/dtex) of any lightweight polymer fiber. Result: ropes that respond with micro precision resulting in maximum speed. Contact us for strength and dimensions.
Break load in accordance with DIN EN ISO 2307
Manufactured by Offshore & Trawl Supply AS – Certified according to ISO 9001:2015

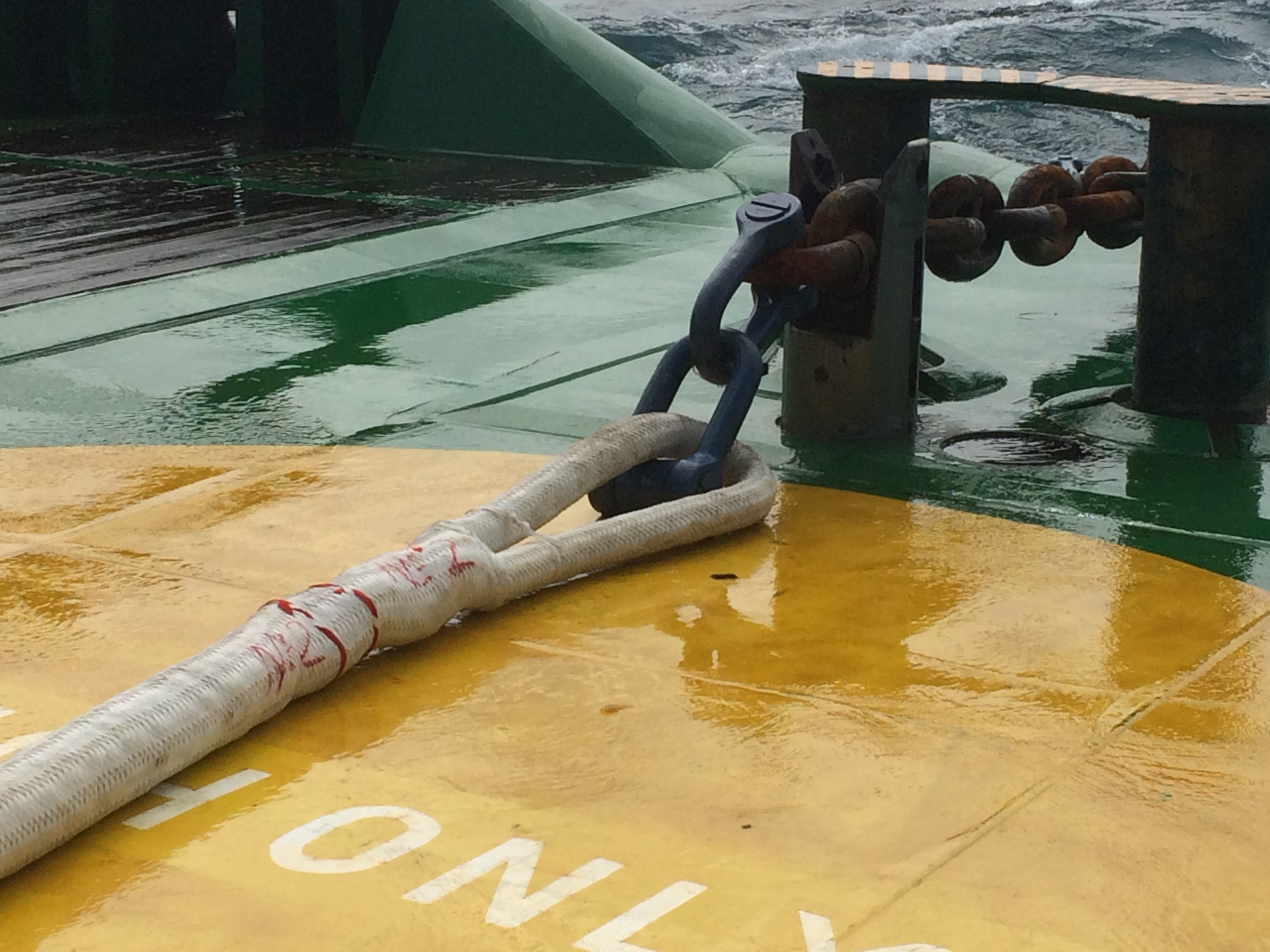

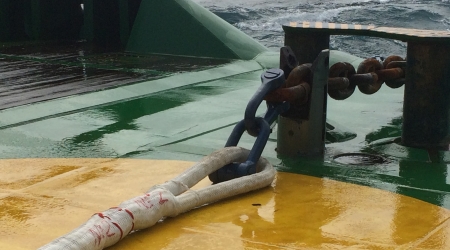

The patented chafe gear - OTS Protective jacket™ - offers excellent protection against external abrasion and increases rope lifetime with up to five times. The "no-rupture" construction combined with the worlds most abrasion resistant synthetic fibers, makes this the best cut -and abrasion resistant cover for your ropes. The jacket is mechanically braided onto the rope for a firm and solid finish.
OTS Protective jacket™ is braided in the following combinations:
- Soft eyes
- Soft eyes and required length (for instance over the splices)
- Exposed area on the rope
- Entire rope length
OTS Protective Jacket™
- Made with HMPE or polyester fiber.
- The OTS Protective Jacket™ comes out as a clear winner in comparative testing of abrasion and cut resistance.
- Excellent protection against wear and tear.
- Patented technology
Advantages
- Increases service life.
- Can be braided onto entire rope or exposed areas.
- Prevents rope from twisting.
- Protects rope from external abrasion.
- Reduced size of mooring line.
- Reflective material can be woven into jacket band for better visibility.
- Jacket band can be delivered in any colour.
Patent no: 314459
