Dextron® Lifting Slings

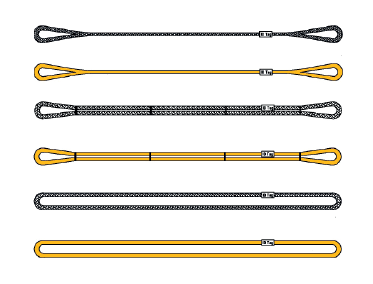

Dextron® Lifting Slings made with Dextron® 12 Plus (Dyneema® SK78) or Dextron® 12 Super (Dyneema® SK99) are tailor made according to customer specifications with single leg, grommet configuration, or double grommet configuration. The high strength-to-weight ratio gives fast and easy rigging while retaining personell health and safety.
As a safety option Dextron® Lifting Slings are delivered with the patented proprietary chafe gear – OTS Protective Jacket™. The jacket protects the load bearing rope from cut and abrasion damage, and contribute to increased service life-time.
Capabilities
- Available dimensions from EWL: 0.5 m – 50.0 m and MBL: 7,6Te – 2316Te
- Patented protection jacket for proven extended lifetime.
- OTS Chafe gear for extra protection around lifting points.
- In-house proof load testing and length verification acc. DNV Marine Operations DNVGL-ST-N001
- ±0.25 % on overall length requirements, ±10 mm or ±0.5 rope dia. between pairs (depending on rope sling type).
- Inspection, repair and re-certification services.
- Engineered lift incl. fiber friendly custom-made hardware solutions.
Proof load testing / length verification
- In-house certifi cation
- License to issue certifi cation for lifting (ILO)
- 600Te load capacity
- 25.0 m length / 50.0 basket length
- 3.0 m stroke
- Break load testing services
- 3rd party inspection (DNV, BV, ABS etc.).
All of our Dextron® 12 ropes are now made with Bio-Based Dyneema®.
Our contribution to reduced CO2 footprint and improved environment.
See further details on dyneema.com/sustainability/bio-based-dyneema-fiber
Dextron®12 Plus is a torque-free, 12-strand braided rope with maximum strength-to-weight ratio and size-for-size has the same strength as steel. Dextron®12 Plus is made with Dyneema® SK78 and is an excellent wire rope replacement with extremely low stretch, superior flex fatigue and wear resistance.
Dextron®12 Plus is Type-Approved by DNV. Download certificate
|
Applications
|
Special Properties
|
Characteristics:
| Material | Dyneema®SK78 |
| Colour of rope | Yellow |
| Elastic elongation | 0,44% at 10% of breaking load 0,62% at 20% of breaking load 0,79% at 30% of breaking load |
| Water absorption | None |
| Abrasion resistance | Very good |
| Fatigue resistance | Excellent |
| UV exposure | Very good |
| Chemical resistance | Excellent |
| Melting range | 144-152 ºC |
| Max work temp. | 65ºC |
| Specific density | 0,98 (floating) |
Maximum strength without compromise. The Dextron® 12 Super is a rope made with Dyneema® SK99 - the ultra-strong fiber. Dextron® 12 Super is the optimal choice for operations with very high demand on modulus and breaking strength.
Characteristics
| Material | Dyneema® SK99 |
| Colour of rope | Yellow with gold tracer |
| Elastic elongation | 0,44 at 10% 0,62 at 20% 0,79 at 30% of breaking load |
| Water absorption | None |
| Abrasion resistance | Very good |
| Fatigue resistance | Excellent |
| UV exposure | Very good |
| Chemical resistance | Excellent |
| Melting range | 144-152 ºC |
| Max work temp. | 65ºC |
| Specific density | 0,98 (floating) |
Dyneema® SK99 is the latest innovation for highest level of performance. Dyneema®SK99 has the highest tenacity (42.5 cN/dtex) and modulus (1590cN/dtex) of any lightweight polymer fiber. Result: ropes that respond with micro precision resulting in maximum speed. Contact us for strength and dimensions.
Break load in accordance with DIN EN ISO 2307
Manufactured by Offshore & Trawl Supply AS – Certified according to ISO 9001:2015
